Central vacuum cleaner - EVO550
Central vacuum cleaner - EVO550
Central vacuum cleaner - EVO550

  • Domestic

  • EVO550
  • Central vacuum cleaner - EVO550
  • High quality central vacuum system unit Disan EVO550
    • How many simultaneous users: 1 user
    • max. Vacuum sockets: 10-15
    • max. length of tube: ca. 100 m
    • Area: 350 m²
    • Total surface: Up to 350 m²
  • INQUIRE NOW

Simultaneous users: 1

Max. Vacuum sockets: 10-15

Total surface: 350m2

Max. length of tube: 100m

The Disan central vacuum system EVO550 is one of the two models from the EVO product line for domestic use. The difference between the EVO models and the other ones for private use is the material. EVO central vacuums are in heavy-duty ABS material. However, the other ones are in painted sheet steel.

The EVO550 cleans a surface of up to 400 m2 (4,300 sq. foot).

Like all Disan central vacuum cleaner it guarantees durability, strong suction and offers great comfort for your home. Thanks to the strong suction of Disan central vacuums cleaning will be faster and more efficient.

  • in heavy duty ABS material
  • removable dirt canister with closing hooks and handles
  • built-in 12 Volt inlets control
  • cyclone conveyor
  • silenced motor compartment
  • motor protection cloth filter
  • fuse
  • cartridge filter
  • connections for linkage at piping network
  • outside silencer
  • fixing bracket for wall mounting
  • changeable in- and outlet from right to left
  • CE certification

Motor power Kw 1,45
Turbine stages no. 1
Voltage requirement V 230
EC Safety degree IP40
Suction power max mbar 302 H2O lift 121"
Airflow max m3/h 199 CFM 117
Air watts @ Ø32mm W 658
Cyclonical separator no. 1
Filter surface cm2 8.000 sq. inch 1,239
Fabric of framework ABS
Dust receptacle capacity l 20 gallons 5,28
Dimensions cm 92x32Ø inch 36,2"x12,6"Ø
Sound level dB 60
Weight with packaging/net kg 20/16 pound 44/35

Would you like to know more about our solutions?

Contact form

Do you need an offer or more information? Fill in the contact form and we will contact you as soon as possible.

MORE PRODUCTS You might also be interested in

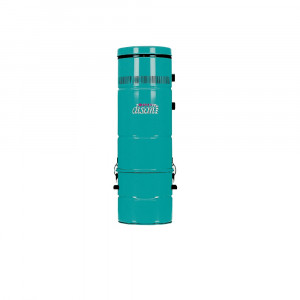

Vacuum cleaner - ZSA 45/3
