Disan Zentralstaubsauger HK 175i
  • Modular

  • HK175IE
  • Central Vacuum System - HK175IE
  • Central Vacuum System Disan EF125IE for commercial or industrial use and 8 +1 simultaneous users
    • How many simultaneous users: 9 users
    • Volume filter chamber: 580 l

Simultaneous users: 9

Volume filter chamber: 580 l

“Modular” is the name of the product line of Disan central vacuum cleaners for industrial use (for example hotels, spa, industries, factories and companies).

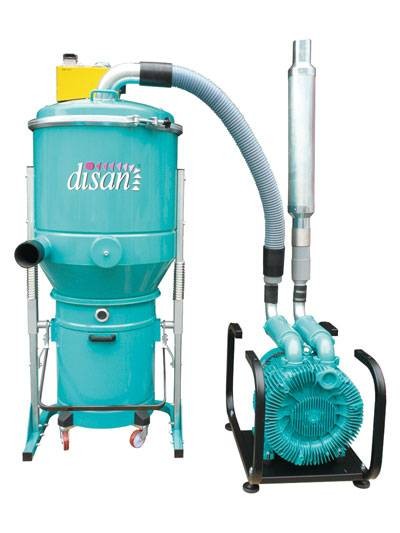

The central vacuum cleaner HK175IE equipped with inverter is the largest and most powerful central vacuum produced by Disan. Up to nine simultaneous operators can use this central vacuum at the same time. These characteristics make it perfect for the professional cleaning of large buildings, industries and hotel facilities.

The Disan Modular line guarantees durability, constant high suction power and easy handling in the industrial sector. Central vacuum systems by Disan clean fast, thoroughly and efficiently.

  • one silenced double-V shaped SIEMENS turbine with three-phase side channel motor without transmission, secured on a metal frame
  • electronic inverter for continuous modulation of the frequency from 34 to 84 Hertz with electromagnetic shielding of type B
  • cyclonic dust separator in steel, painted with epoxy powder, secured on a metal frame
  • filter chamber equipped with industrial-conceived star filter made of special polyester cloth with high withholding properties
  • deflector for the mechanical-gravitational separation of dust
  • dirt receptacle on wheels with disposable plastic bags and cushioned fasteners
  • safety and compensation valves, arranged for pressure compensation system in the dust bag
  • automatic self-cleaning filter device through programmable shaking device
  • electric control box with IP55 safety degree
  • realized in accordance with CEI norms
  • low-voltage (12 V) outlet and equipped with electric chart for linkage
  • double Ø100 metal muffl er for low noise level
  • connections for correct linkage to the piping network and all other parts and accessories for the professional setting of the system

Nominal motor power Kw 11@50Hz
Electrical absorption max Kw 19,0@84Hz
Electrical absorption min Kw 8,94@34Hz
Voltage requirement V 380-400
Suction power max mbar 320 inch H2O 128"
Airflow max m3/h 1.490 CFM 876
Airflow @ 140 mbar m3/h 1.220 CFM@56"718
Filter chamber capacity l 580 gallons 131
Dirt receptacle capacity l 175 gallons 40
Filter surface cm2 62.000 sq. inch 9,610
Motor weight kg 195 pound 429
Motor dimensions cm 70x67x97 inch 26,5x26,4x38,1
Separator weight kg 200 pound 441
Separator dimensions cm 95x88x216 inch 85x34x37
Sound level dB 84
