Central Vacuum System - H02
  • Modular

  • H175ST
  • Central Vacuum System - H02
  • Central Vacuum System Disan H02 for commercial or/and industrial use and 8 simultaneous users
    • How many simultaneous users: 8 users
    • Area: 4000 m²
    • Total surface: Up to 4000 m²
  • INQUIRE NOW

Simultaneous users: 8

Total surface: 4000m2

“Modular” is the name of the product line of Disan central vacuum cleaners for industrial use (for example hotels, spa, industries, factories and companies).

The central vacuum cleaner H02 is one of the largest and most powerful central vacuums produced by Disan allowing eight simultanous operators. Because of that it is ideal for the professional cleaning of large buildings and hotel facilities.

The Disan Modular line guarantees durability, constant high suction power and easy handling in the industrial sector. Central vacuum systems by Disan clean fast, thoroughly and efficiently.

  • two silenced double-V shaped SIEMENS turbines with three-phase side channel motor without transmission, star-triangle starting, secured on a metal frame, IP55 safety degree
  • cyclonic dust separator in steel, painted with epoxy powder, secured on a metal frame
  • filter chamber equipped with industrial-conceived star filter made of special polyester cloth with high withholding properties
  • deflector for the mechanical-gravitational separation of dust
  • dirt receptacle on wheels with disposable plastic bags and cushioned fasteners
  • safety and compensation valves, arranged for pressure compensation system in the dust bag
  • manual filter shaker predisposed for self-cleaning fi lter device
  • electric control box with IP55 safety degree
  • realized in accordance with CEI norms
  • low-voltage (12 V) outlet and equipped with electric chart for linkage
  • connections for correct linkage to the piping network and all other parts and accessories for the professional setting of the system

Motor power Kw 2x7,5
Voltage requirement V 380-400
Suction power max mbar 380 inch H2O 152"
Airflow max m3/h 1810 CFM 1,065
Airflow @ 140 mbar m3/h 1470 CFM@56" 865
Filter chamber capacity l 580 gallons 131
Dirt receptacle capacity l 175 gallons 408
Filter surface cm2 62.000 sq. inch 9,610
Motor weight kg 369 pound 813
Motor dimensions cm 59,5x97x145 inch 57x23x38,1
Separator weight kg 195 pound 429
Separator dimensions cm 88x95x216 inch 85x34x37
Sound level dB 78

Would you like to know more about our solutions?

Contact form

Do you need an offer or more information? Fill in the contact form and we will contact you as soon as possible.

MORE PRODUCTS You might also be interested in

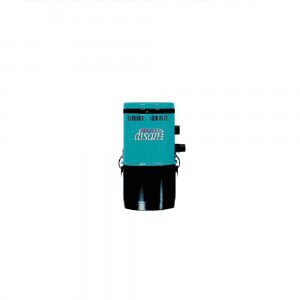

Vacuum cleaner - ZSA 25/1
